Product Introduction
Product Details
Production method:
Low-silicon, low-sodium fused cast AZS series products are characterized by low glass phase content, good high-temperature stability, high glass phase exudate temperature, and excellent resistance to glass liquid erosion, which can significantly reduce the pollution of refractory materials to glass liquid. Its lower exudate and higher compressive strength and excellent resistance to alkali corrosion characteristics applied to the top of the glass kiln AZS big swan, pool wall corners and other parts. It is a better fused zirconium corundum product for the kiln to realize overall heat preservation, energy saving and long life. At present, it is widely used in the field of oxy-fuel glass kiln.
Casting method:
The casting methods of electrofused zirconia corundum bricks are normal casting, tilted casting, shrinkage-free casting and .

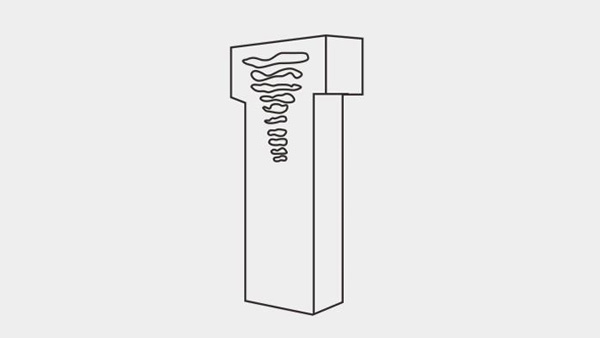

PT—Ordinary Casting
The usual casting method, the shrinkage hole of the product is located in the lower part of the casting mouth, mostly used in the upper part of the melting pool flame space parts, such as not in contact with the glass solution or erosion is not serious parts.

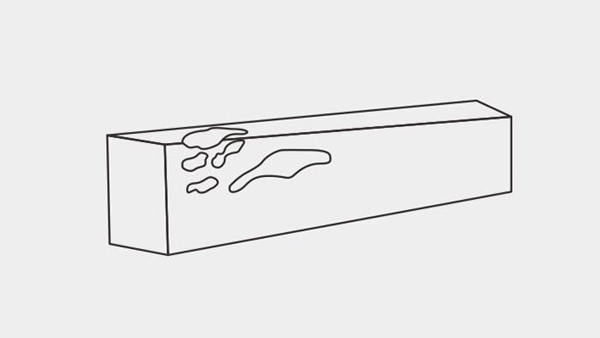

QX—Inclined Casting
A tilted casting method is used to create a slant in the mold, and the riser is placed at the other end for casting. The shrinkage hole of the product is placed at the lower end, which is suitable for the products with the length >60mm, mainly used for pool wall bricks.
WS—Non Shrinkage Casting
The non-shrinkage products with the shrinkage part of the casting bricks removed, mainly used in liquid holes, kiln cans, corners of the pool wall, pavement and other seriously eroded parts.
ZWS—Quasi Non Shrinkage Casting
Similar to non-shrinkage casting, basically removed the shrinkage part of the cast brick, mainly used for pool wall bricks.
ProductDescription:
AzS-Y-41 has high zirconium content,ismore dense,and contains more uniformlydistributed zirconia crystals,which has strong resistance to glass liquid.Therefore,such bricks are mostly used in extremely critical parts of kilns.Forexample:electrode holes,kiln ridges,fiowholes,cornerbricks,and the pool walls of some special materials.
Physical and chemical indicators:
Item | Index | |
AZS41-Y | ||
| Al₂O₃ | Residual |
ZrO₂ | ≥41.00 | |
SiO₂ | ≤12.00 | |
Na₂O | ≤1.30 | |
(Fe₂O₃+TiO₂+CaO+MgO+Na₂O+K₂O) | ≤2.00 | |
(Fe₂O₃+TiO₂) | ≤0.25 | |
Bulk Density | ≥4.00g/cm³ | |
Apparent Porosity | ≤0.8% | |
Static Resistance To Glass Liquid Erosion Speed(Ordinary Sodium Calcium Glass,1500℃×36h) | ≤1.20mm/24h | |
Initial Crystallization Temperature Of Glassphase | ≥1410℃ | |
BubblePrecipitation Rate (Ordinary Sodium Calcium Glass,1300℃x10h) | ≤1.0% | |
Glass Phase Exudation Amount(1500℃x4h) | ≤3.0% | |
Capacity a/(kg/m³) | PT、QX | >3650 |
ZWS | >3900 | |
WS | >3950 | |
Fused Cast AZS 41# Blocks are highly specialized and important materials in various industrial applications.
These blocks are made through a fusion-casting process, which results in a product with excellent properties. They are known for their high density and superior mechanical strength, enabling them to withstand harsh conditions and heavy loads.
The AZS in Fused Cast AZS 41# Blocks stands for Alumina-Zirconia-Silica, indicating the composition of these blocks. This composition gives them remarkable resistance to high temperatures, corrosion, and abrasion. They are often used in industries such as glass manufacturing, where they are exposed to extreme heat and chemical environments.
The blocks have a smooth and uniform surface, which helps in providing a stable and consistent performance. They can be precisely cut and shaped to fit specific requirements in different industrial setups.
In the glass industry, Fused Cast AZS 41# Blocks are crucial for the construction of furnaces and other equipment. Their ability to resist thermal shock and maintain their integrity over long periods of time is highly valued.
Moreover, these blocks offer good thermal conductivity, allowing for efficient heat transfer within the industrial processes. They contribute to the overall efficiency and productivity of the operations.
The manufacturing process of Fused Cast AZS 41# Blocks is complex and requires advanced techniques and quality control to ensure the desired properties are achieved. Skilled professionals and strict quality standards are adhered to in their production.
